SA36-11GWA | Kingbright

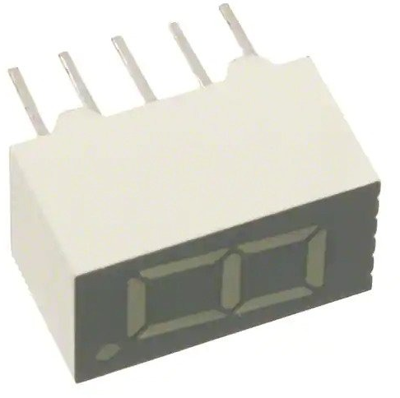

7-Segment Display SA36-11GWA
Unit Price (€ / pc.)
2.5704 € *
Standard delivery time from the manufacturer is: 1 Week
7-segment displays, type Kingbright SA36../SC36.
Font height: 9.14 mm (0.36 inch). Package dimensions: 14 x 7.5 x 8.5 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (min./typical) at 10 mA, common connection): SA36-11GWA, green, 568 nm, 800/3500 µcd, anode
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of positions | 1 | |
| Character height | 9.14 mm | |
| Colour | green | |
| Light intensity min. | 0.0014 cd | |
| Light intensity typ. | 0.0035 cd | |
| Wavelength | 568 nm | |
| Rated current | 25 mA | |
| Connection | anode | |
| Assembly | THT | |
| Length | 14 mm | |
| Width | 7.5 mm | |
| Height | 8.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| MSL | MSL 1 |
| Original Packaging | Bar with 36 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
