DA56-11EWA | Kingbright

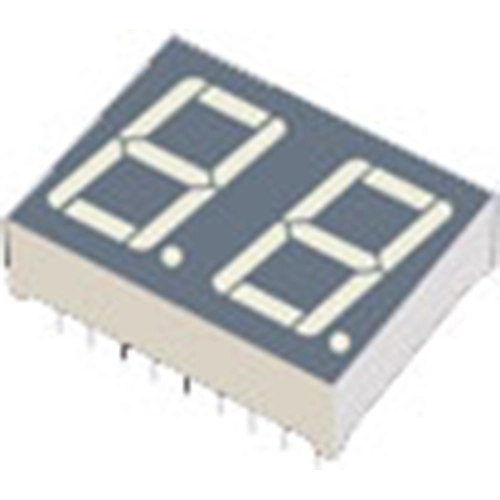

7-Segment Display DA56-11EWA
Active
Total price
(
2.3562 €
* / pcs.)
2.36 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Kingbright at Bürklin Elektronik
7-segment displays, 2-digit, type Kingbright DA56../DC56.
Font height: 14.22 mm (0.56 inch). Package dimensions: 25 x 19.05 x 8.0 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (min./typical) at 10 mA, common connection): DA56-11EWA, red, 625 nm 1900/8000 µcd, anode
Technical specifications
| Connection | anode | |
| Number of positions | 2 | |
| Rated current | 0.03 A | |
| Width | 19.05 mm | |
| Colour | red | |
| Height | 8 mm | |
| Length | 25 mm | |
| Light intensity min. | 0.0036 cd | |
| Light intensity typ. | 0.008 cd | |
| Assembly | THT | |
| Wavelength | 0.625 µm | |
| Character height | 14.22 mm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
