LIGHT-BAR KB-2550CGKD
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 8 Weeks

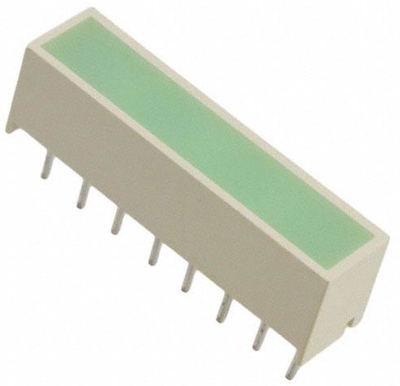

LED Light bar, KB-2550CGKD, Kingbright
The green source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Uniform light emitting area
- Low current operation
- Easily mounted on P.C. boards or industry standard sockets
- Flush mountable
- Excellent on/off contrast
- Can be used with panels and legend mounts
- Categorized for luminous intensity
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Lens | green-diffuse | |
| Wavelength | 570 nm | |
| Length | 20.04 mm | |
| Height | 6.1 mm | |
| Light intensity typ. | 0.11 cd | |
| Assembly | THT | |
| Width | 4.86 mm | |
| Light intensity min. | 0.055 cd | |
| Rated current | 30 mA | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
