DE/4CGKD | Kingbright
LIGHT BAR DE/4CGKD
Unit Price (€ / pc.)
1.4399 € *
Standard delivery time from the manufacturer is: On Request

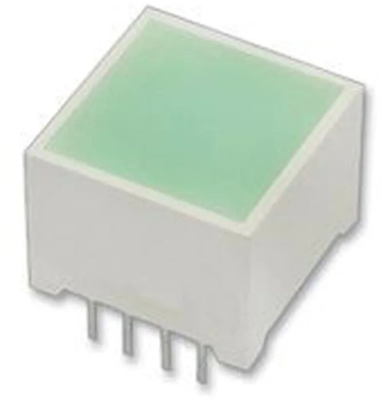

Light bar, DE/4CGKD, Kingbright
The green source color device is made with AlGaInP on GaAs substrate light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. Electrostatic discharge and power surge could damage the LEDs.
Features
- Uniform light emitting area
- Easily mounted on P.C. boards or industry standard sockets
- Flush mountable
- Excellent on/off contrast
- Can be used with panels and legend mounts
- Mechanically rugged
- RoHS compliant
Applications
- Home and smart appliances
- Display time and digital combination
- Industrial and instrumental applications
- Numeric status
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Light intensity min. | 0.12 cd | |
| Light intensity typ. | 0.22 cd | |
| Wavelength | 570 nm | |
| Lens | green-diffuse | |
| Colour | green | |
| Rated current | 30 mA | |
| Assembly | THT | |
| Length | 15 mm | |
| Width | 15 mm | |
| Height | 11.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 33 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
