DC-10SYKWA | Kingbright

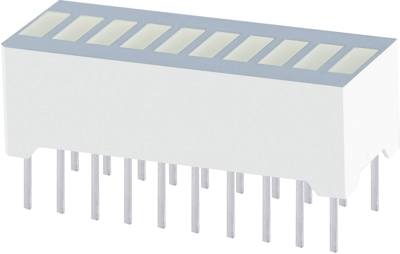

LED-bar yellow 20mA 2V 110mcd 10xLED DC-10SYKWA
Unit Price (€ / pc.)
2.3681 € *
Available: 1,017 pcs.
Total Price:
2.37 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3681 €
20 pcs.
2.0825 €
100 pcs.
1.9516 €
260 pcs.
1.8683 €
1000 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale
LED, DC-10SYKWA, Kingbright
The Super Bright Yellow device is made with AlGaInP (on GaAs substrate) light emitting diode chip.
Features
- Suitable for level indicators.
- Low current operation.
- Excellent on/off contrast.
- End stackable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 8 mm | |
| Length | 25.4 mm | |
| Wavelength | 590 nm | |
| Lens | white-diffuse | |
| Colour | yellow | |
| Light intensity typ. | 0.065 cd | |
| Light intensity min. | 0.031 cd | |
| Assembly | THT | |
| Width | 10.16 mm | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 20 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
