DC-10EWA | Kingbright
Bargraph display
Unit Price (€ / pc.)
1.9873 € *
Standard delivery time from the manufacturer is: 3 Weeks

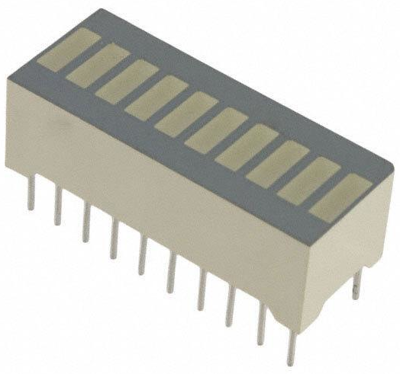

Bargraph display, DC-10EWA, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Suitable for level indicators
- Low current operation
- Excellent on/off contrast
- End stackable
- Mechanically rugged
- RoHS compliant
Applications
- Home and smart appliances
- Display time and digital combination
- Industrial and instrumental applications
- Numeric status
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Wavelength | 627 nm | |
| Width | 10.16 mm | |
| Rated current | 30 mA | |
| Lens | white-diffuse | |
| Light intensity min. | 0.0036 cd | |
| Assembly | THT | |
| Light intensity typ. | 0.009 cd | |
| Height | 8 mm | |
| Length | 25.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 20 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
