L-934ND | Kingbright
LED, THT, orange, 610 nm, 0.012 to 0.03 cd, 60°, L-934ND
Unit Price (€ / pc.)
0.1238 € *
Available: 145 pcs.
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1238 €
125 pcs.
0.1107 €
500 pcs.
0.1000 €
2000 pcs.
0.0904 €
5000 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

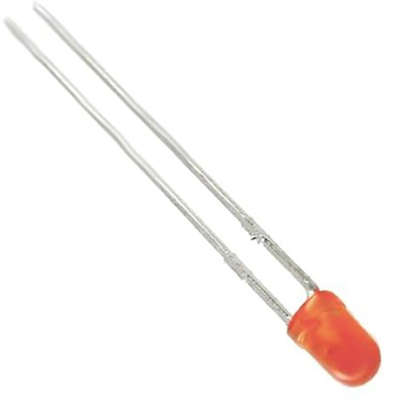

Solid state lamp, L-934ND, Kingbright
The Pure Orange source color device is made with gallium arsenide phosphide on gallium phosphide Pure Orange light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | orange | |
| Wavelength | 610 nm | |
| On-State Voltage | 2.05 V | |
| Lens | orange | |
| Light intensity min. | 0.012 cd | |
| Forward Current | 20 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 1 | |
| Radiation angle | 60 ° | |
| Light intensity typ. | 0.03 cd |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
