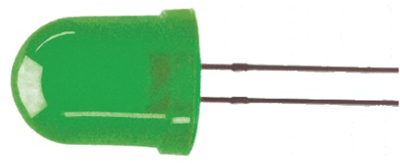

L-813GD | Kingbright
LED, THT, Ø 10 mm, green, 565 nm, 0.02 to 0.06 cd, 30°, L-813GD
Unit Price (€ / pc.)
0.2059 € *
Standard delivery time from the manufacturer is: 10 Weeks
Solid state lamp, L-813GD, Kingbright
The green source color device is made with gallium phosphide green light emitting diode.
Features
- 10 mm diameter big lamp
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 1 | |
| Radiation angle | 30 ° | |
| Colour of the LED | green | |
| Wavelength | 565 nm | |
| Assembly | THT | |
| Lens | green | |
| Light intensity min. | 0.02 cd | |
| diameter | 10 mm | |
| Light intensity typ. | 0.06 cd | |
| min. operating temperature | -40 °C | |
| On-State Voltage | 2.5 V | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bag with 200 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
