L-793GD | Kingbright
LED, THT, Ø 8 mm, green, 565 nm, 30 mcd to 60 cd, 30°, L-793GD
Unit Price (€ / pc.)
0.3808 € *
Available: 2,299 pcs.
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.2701 €
100 pcs.
0.2309 €
500 pcs.
0.2011 €
1000 pcs.
0.1833 €
*incl. VAT plus shipping costs
Subject to prior sale

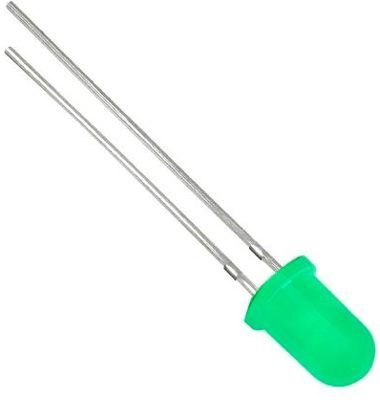

Round LED lamp, L-793GD, Kingbright
The green source color device is made with gallium phosphide green light emitting diode.
Features
- 8 mm diameter big lamp
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 8 mm | |
| Radiation angle | 30 ° | |
| Lens | green | |
| Wavelength | 565 nm | |
| Forward Current | 25 mA | |
| max. operating temperature | 85 °C | |
| Length | 11 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 60 cd | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.03 cd | |
| On-State Voltage | 2.2 V | |
| Colour of the LED | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bag with 200 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
