L-7113ZGC-G | Kingbright
LED, THT, T-1 3/4, Ø 5 mm, green, 520 nm, 16000 mcd to 30000 cd, 20°, L-7113ZGC-G
Order No.: 67S4565
EAN: 4099879011039
MPN:
L-7113ZGC-G
Unit Price (€ / pc.)
0.5117 € *
Available: 929 pcs.
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
50 pcs.
0.4165 €
250 pcs.
0.3451 €
1000 pcs.
0.3011 €
2500 pcs.
0.2642 €
*incl. VAT plus shipping costs
Subject to prior sale

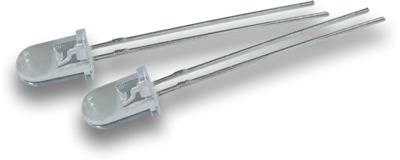

Solid state lamp, L-7113ZGC-G, Kingbright
The green source color device is made with InGaN light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Applications
- Status indicator
- Illuminator
- Signage applications
- Decorative and entertainment lighting
- Commercial and residential architectural lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 520 nm | |
| Enclosure | T-1 3/4 | |
| Light intensity typ. | 30000 cd | |
| Forward Current | 30 mA | |
| diameter | 5 mm | |
| Assembly | THT | |
| Radiation angle | 20 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 4 V | |
| Light intensity min. | 16 cd | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Lens | clear | |
| Length | 8.6 mm | |
| Colour of the LED | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
