L-7113SURCK | Kingbright

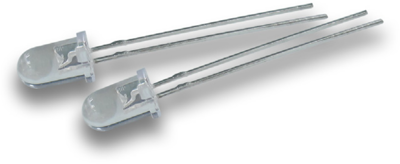

LED, THT, Ø 5 mm, red, 630 nm, 2.7 to 3.5 cd, 20°, L-7113SURCK
Unit Price (€ / pc.)
0.1987 € *
Available: 411 pcs.
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1987 €
50 pcs.
0.1416 €
250 pcs.
0.1190 €
1000 pcs.
0.1023 €
2500 pcs.
0.0893 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid state lamp, L-7113SURCK, Kingbright
The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 20 ° | |
| Colour of the LED | red | |
| min. operating temperature | -40 °C | |
| Lens | clear | |
| diameter | 5 mm | |
| Light intensity typ. | 3.5 cd | |
| On-State Voltage | 2.5 V | |
| Length | 8.6 mm | |
| Forward Current | 20 mA | |
| Light intensity min. | 2.7 cd | |
| Number of LEDs | 1 | |
| Assembly | THT | |
| Wavelength | 630 nm | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
