L-7113SRC-J4 | Kingbright

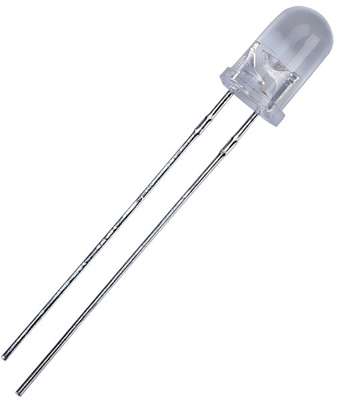

LED, THT, Ø 5 mm, red, 640 nm, 5 to 8 cd, 20°, L-7113SRC-J4

Order No.: 72S7066
EAN: 4099879017185
MPN:
L-7113SRC-J4
Series: L-7113
L-7113SRC-J4 Kingbright LEDs
Image may differ
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
279.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.2796 €

Solid state lamp, L-7113SRC-J4, Kingbright

The super bright red source color device is made with AlGaInP on Si substrate light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.

Features

  • Low power consumption
  • General purpose leads
  • Reliable and rugged
  • Long life - solid state reliability
  • RoHS compliant

Applications

  • Status indicator
  • Illuminator
  • Signage applications
  • Decorative and entertainment lighting
  • Commercial and residential architectural lighting
Technical specifications
Filter Property Value
Number of LEDs 1
Radiation angle 20 °
Colour of the LED red
Wavelength 640 nm
Assembly THT
Lens clear
Light intensity min. 5 cd
Length 8.6 mm
diameter 5 mm
Light intensity typ. 8 cd
Forward Current 20 mA
min. operating temperature -40 °C
On-State Voltage 2.5 V
max. operating temperature 85 °C
Logistics
Property Value
Country of origin CN
Original Packaging Bag with 500 pieces
Customs tariff number 85414100
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
