L-7113SEC | Kingbright

LED, THT, Ø 5 mm, red, 625 nm, 0.65 to 2.5 cd, 20°, L-7113SEC

Order No.: 72S7061
EAN: 4099879017130
MPN:
L-7113SEC
Series: L-7113
L-7113SEC Kingbright LEDs

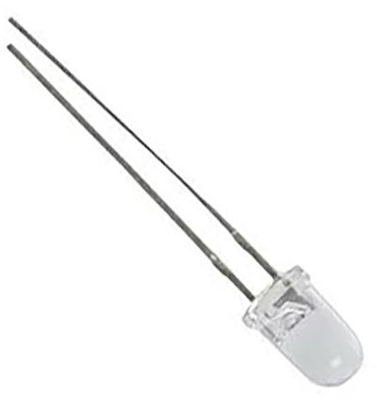

Image may differ
Unit Price (€ / pc.)
0.1678 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
167.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.1678 €

Solid state lamp, L-7113SEC, Kingbright

The hyper red device is based on light emitting diode. made from AlGaInP.

Features

  • Low power consumption
  • General purpose leads
  • Reliable and rugged
  • Long life - solid state reliability
  • RoHS compliant
Technical specifications
Filter Property Value
Colour of the LED red
Assembly THT
Light intensity typ. 2.5 cd
Lens clear
Wavelength 625 nm
Light intensity min. 0.65 cd
max. operating temperature 85 °C
Radiation angle 20 °
On-State Voltage 2.2 V
Forward Current 20 mA
diameter 5 mm
min. operating temperature -40 °C
Number of LEDs 1
Length 8.6 mm
Logistics
Property Value
Country of origin CN
Original Packaging Bag with 500 pieces
Customs tariff number 85414100
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
