L-7113SEC-J3 | Kingbright
LED, THT, Ø 5 mm, red, 640 nm, 7 to 11 cd, 20°, L-7113SEC-J3
Unit Price (€ / pc.)
0.6426 € *
Available: 145 pcs.
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
25 pcs.
0.5117 €
100 pcs.
0.4284 €
250 pcs.
0.3808 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

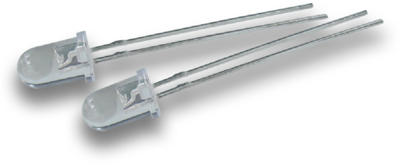

Solid state lamp, L-7113SEC-J3, Kingbright
The hyper red device is based on light emitting diode. made from AlGaInP.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 640 nm | |
| diameter | 5 mm | |
| max. operating temperature | 85 °C | |
| Length | 8.6 mm | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 2 | |
| On-State Voltage | 2.8 V | |
| Colour of the LED | red | |
| Lens | clear | |
| Light intensity typ. | 11 cd | |
| Forward Current | 30 mA | |
| Light intensity min. | 7 cd | |
| Radiation angle | 20 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Bag with 500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
