L-7113ID-5V | Kingbright
LED, THT, T-1 3/4, Ø 5 mm, red, 627 nm, 20 to 40 mcd, 30°, L-7113ID-5V
Order No.: 67S1860
EAN: 4099879010650
MPN:
L-7113ID-5V
Unit Price (€ / pc.)
0.4879 € *
Available: 279 pcs.
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4879 €
50 pcs.
0.3689 €
100 pcs.
0.3094 €
500 pcs.
0.2761 €
1000 pcs.
0.2523 €
*incl. VAT plus shipping costs
Subject to prior sale

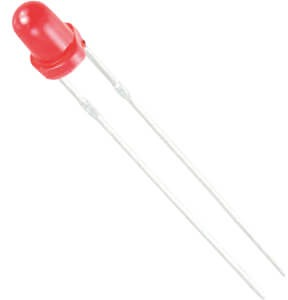

Solid state lamp, L-7113ID-5V, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 1 | |
| Length | 8.6 mm | |
| Assembly | THT | |
| diameter | 5 mm | |
| Wavelength | 627 nm | |
| Light intensity typ. | 0.04 cd | |
| On-State Voltage | 6 V | |
| Colour of the LED | red | |
| max. operating temperature | 70 °C | |
| Radiation angle | 30 ° | |
| Lens | red | |
| Forward Current | 17.5 mA | |
| Light intensity min. | 0.02 cd | |
| min. operating temperature | -40 °C | |
| Enclosure | T-1 3/4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Bag with 500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
