L-7113GC | Kingbright

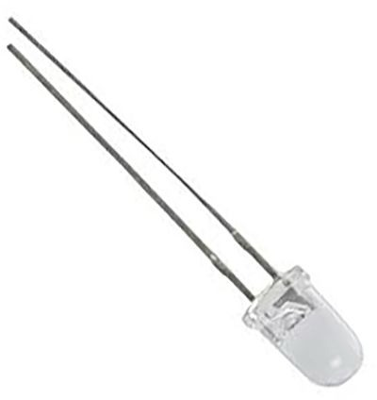

LED, THT, Ø 5 mm, green, 568 nm, 18 to 60 mcd, 20°, L-7113GC

Order No.: 72S7057
EAN: 4099879017109
MPN:
L-7113GC
Series: L-7113
L-7113GC Kingbright LEDs
Image may differ
Unit Price (€ / pc.)
0.0916 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
91.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.0916 €

Solid state lamp, L-7113GC, Kingbright

The green source color device is made with gallium phosphide green light emitting diode.

Features

  • Low power consumption
  • General purpose leads
  • Reliable and rugged
  • Long life - solid state reliability
  • RoHS compliant

Applications

  • Status indicator
  • Illuminator
  • Signage applications
  • Decorative and entertainment lighting
  • Commercial and residential architectural lighting
Technical specifications
Filter Property Value
Colour of the LED green
Assembly THT
Light intensity typ. 0.06 cd
Lens clear
Wavelength 568 nm
Light intensity min. 0.018 cd
max. operating temperature 85 °C
Radiation angle 20 °
On-State Voltage 2.4 V
Forward Current 10 mA
diameter 5 mm
min. operating temperature -40 °C
Number of LEDs 1
Length 8.6 mm
Logistics
Property Value
Country of origin CN
Original Packaging Bag with 1,000 pieces
Customs tariff number 85414100
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
