L-7113EC | Kingbright
LED, THT, Ø 5 mm, red, 617 nm, 28 to 80 mcd, 20°, L-7113EC
Unit Price (€ / pc.)
0.1083 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
108.29 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.1083 €
2500 pcs.
0.0952 €
*incl. VAT plus shipping costs
Subject to prior sale

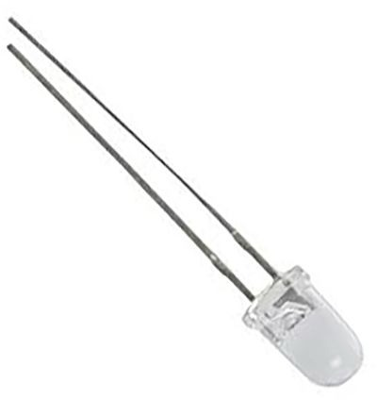

Solid state lamp, L-7113EC, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 617 nm | |
| diameter | 5 mm | |
| max. operating temperature | 85 °C | |
| Length | 8.6 mm | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 1 | |
| On-State Voltage | 2.3 V | |
| Colour of the LED | red | |
| Lens | clear | |
| Light intensity typ. | 0.08 cd | |
| Forward Current | 10 mA | |
| Light intensity min. | 0.028 cd | |
| Radiation angle | 20 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| MSL | MSL 1 |
| Original Packaging | Bag with 1,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
