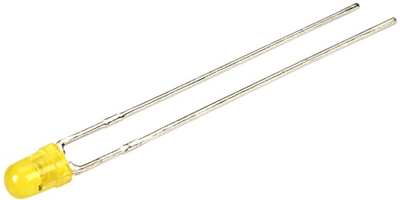

L-7104YD-12V | Kingbright
LED, THT, T-1 (3 mm), Ø 2.9 mm, yellow, 590 nm, 6 to 11 mcd, 40°, L-7104YD-12V
Order No.: 67S1852
EAN: 4099879010643
MPN:
L-7104YD-12V
Unit Price (€ / pc.)
0.1452 € *
Available: 411 pcs.
Solid state lamp, L-7104YD-12V, Kingbright
The yellow source color device is made with gallium arsenide phosphide on gallium phosphide yellow light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 590 nm | |
| Enclosure | T-1 (3 mm) | |
| Light intensity typ. | 0.011 cd | |
| Forward Current | 11.5 mA | |
| diameter | 2.9 mm | |
| Assembly | THT | |
| Radiation angle | 40 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 14 V | |
| Light intensity min. | 0.006 cd | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -40 °C | |
| Lens | yellow | |
| Length | 5.4 mm | |
| Colour of the LED | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Bag with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
