L-7104YC | Kingbright

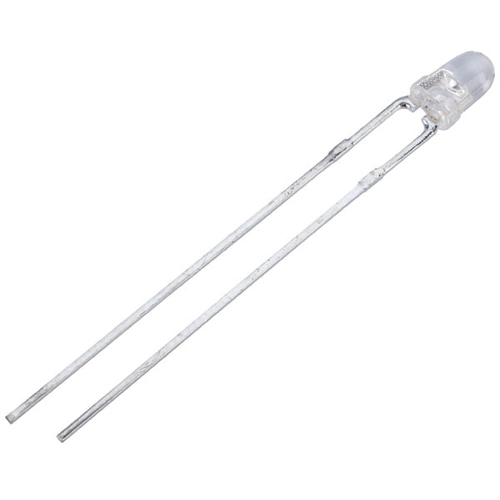

LED, THT, Ø 2.9 mm, yellow, 588 nm, 10 to 30 mcd, 34°, L-7104YC
Unit Price (€ / pc.)
0.0714 € *
Standard delivery time from the manufacturer is: On Request
Solid state lamp, L-7104YC, Kingbright
The yellow source color device is made with gallium arsenide phosphide on gallium phosphide yellow light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Number of LEDs | 1 | |
| Colour of the LED | yellow | |
| Light intensity min. | 0.01 cd | |
| Light intensity typ. | 0.03 cd | |
| Radiation angle | 34 ° | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Forward Current | 10 mA | |
| Wavelength | 588 nm | |
| Length | 4.6 mm | |
| diameter | 2.9 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1,000 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
