L-5A9EGW-12.3SF | Kingbright
LED, THT, red/green, 0.055 cd, 40°, L-5A9EGW-12.3SF
Unit Price (€ / pc.)
0.2094 € *
Standard delivery time from the manufacturer is: 3 Weeks

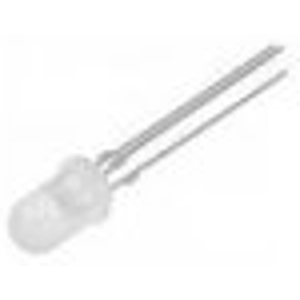

Bi-color indicator lamp, L-5A9EGW-12.3SF, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode. The green source color device is made with gallium phosphide green light emitting diode.
Features
- Uniform light output
- Low power consumption
- 3 leads with one common lead
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Number of LEDs | 2 | |
| Colour of the LED | red/green | |
| Light intensity typ. | 0.055 cd | |
| Radiation angle | 40 ° | |
| Lens | white | |
| On-State Voltage | 2.2 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
