L-59EGW | Kingbright

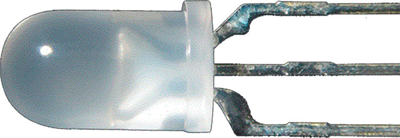

LED, THT, Ø 5 mm, red/green, 565 nm, 20 to 60 mcd, 60°, L-59EGW
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
50 pcs.
0.4760 €
250 pcs.
0.4046 €
1000 pcs.
0.3451 €
2500 pcs.
0.3035 €
*incl. VAT plus shipping costs
Subject to prior sale
Bi-color indicator lamp, L-59EGW, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode. The green source color device is made with gallium phosphide green light emitting diode.
Features
- Uniform light output
- Low power consumption
- 3 leads with one common lead
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 8.6 mm | |
| diameter | 5 mm | |
| Lens | white | |
| Light intensity typ. | 0.06 cd | |
| Forward Current | 30 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Radiation angle | 60 ° | |
| On-State Voltage | 2.5 V | |
| Number of LEDs | 2 | |
| Light intensity min. | 0.02 cd | |
| Colour of the LED | red/green | |
| Assembly | THT | |
| Wavelength | 565 nm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
