L-53YT | Kingbright
LED, THT, yellow, 590 nm, 0.018 to 0.04 cd, 30°, L-53YT
Unit Price (€ / pc.)
0.0690 € *
Standard delivery time from the manufacturer is: 4 Weeks

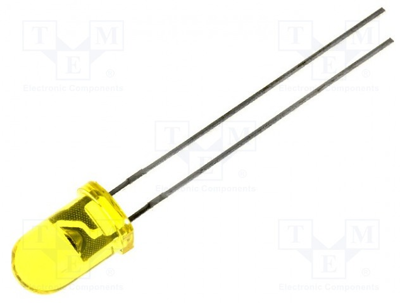

Solid state lamp, L-53YT, Kingbright
The yellow source color device is made with gallium arsenide phosphide on gallium phosphide yellow light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 30 ° | |
| Lens | yellow | |
| Wavelength | 590 nm | |
| max. operating temperature | 85 °C | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.04 cd | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.018 cd | |
| On-State Voltage | 2.1 V | |
| Colour of the LED | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
