L-53YC | Kingbright
LED, THT, Ø 5 mm, yellow, 590 nm, 18 to 40 mcd, 30°, L-53YC
Unit Price (€ / pc.)
0.0869 € *
Standard delivery time from the manufacturer is: 3 Weeks

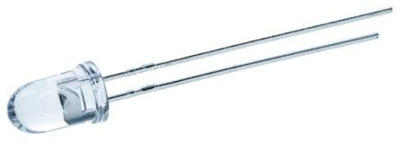

Solid state lamp, L-53YC, Kingbright
The yellow source color device is made with gallium arsenide phosphide on gallium phosphide yellow light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Lens | clear | |
| Number of LEDs | 1 | |
| Light intensity min. | 0.018 cd | |
| On-State Voltage | 2.5 V | |
| Length | 8.6 mm | |
| Wavelength | 590 nm | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| Radiation angle | 30 ° | |
| min. operating temperature | -40 °C | |
| diameter | 5 mm | |
| Forward Current | 20 mA | |
| Colour of the LED | yellow | |
| Light intensity typ. | 0.04 cd |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
