L-53GT | Kingbright
LED, THT, Ø 5 mm, green, 565 nm, 0.018 to 0.06 cd, 30°, L-53GT
Unit Price (€ / pc.)
0.0820 € *
Standard delivery time from the manufacturer is: 10 Weeks

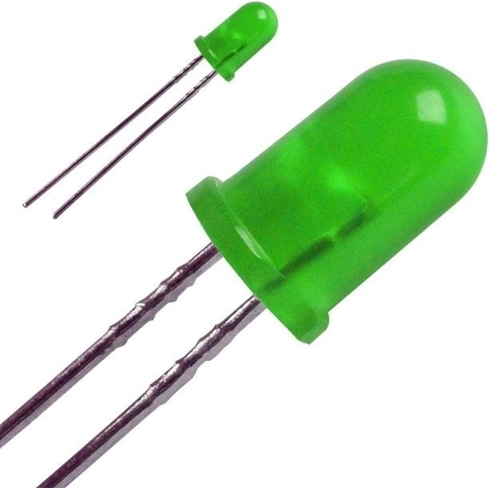

Solid state lamp, L-53GT, Kingbright
The green source color device is made with gallium phosphide green light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Radiation angle | 30 ° | |
| Lens | green | |
| Wavelength | 565 nm | |
| max. operating temperature | 85 °C | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.06 cd | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.018 cd | |
| On-State Voltage | 2.5 V | |
| Colour of the LED | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bag with 1,000 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
