L-53GD | Kingbright

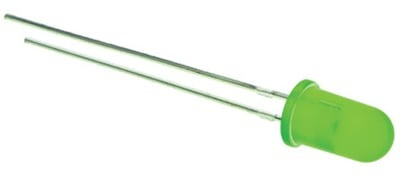

LED, THT, Ø 5.9 mm, green, 565 nm, 5 mcd to 0.02 cd, 60°, L-53GD
Unit Price (€ / pc.)
0.1987 € *
Available: 1,081 pcs.
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1987 €
50 pcs.
0.1416 €
250 pcs.
0.1190 €
1000 pcs.
0.1023 €
2500 pcs.
0.0893 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid state lamp, L-53GD, Kingbright
The green source color device is made with gallium phosphide green light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 1 | |
| Light intensity typ. | 0.02 cd | |
| max. operating temperature | 85 °C | |
| Lens | green | |
| On-State Voltage | 2.5 V | |
| Wavelength | 565 nm | |
| Length | 8.6 mm | |
| diameter | 5.9 mm | |
| Assembly | THT | |
| Radiation angle | 60 ° | |
| Forward Current | 20 mA | |
| min. operating temperature | -40 °C | |
| Colour of the LED | green | |
| Light intensity min. | 0.005 cd |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1,000 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
