L-53EC | Kingbright

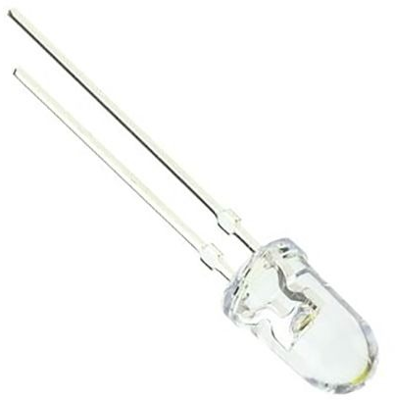

LED, THT, Ø 5 mm, red, 627 nm, 0.028 to 0.08 cd, 30°, L-53EC
Unit Price (€ / pc.)
0.5236 € *
Available: 207 pcs.
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5236 €
50 pcs.
0.4284 €
100 pcs.
0.3451 €
500 pcs.
0.3023 €
1000 pcs.
0.2785 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid state lamp, L-53EC, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| On-State Voltage | 2.5 V | |
| Assembly | THT | |
| diameter | 5 mm | |
| Forward Current | 20 mA | |
| Length | 8.6 mm | |
| Wavelength | 627 nm | |
| Number of LEDs | 1 | |
| min. operating temperature | -40 °C | |
| Lens | clear | |
| Colour of the LED | red | |
| max. operating temperature | 85 °C | |
| Radiation angle | 30 ° | |
| Light intensity min. | 0.028 cd | |
| Light intensity typ. | 0.08 cd |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
