L-383GDT | Kingbright
LED, THT, rectangular, green, 568 nm, 1 to 0.004 cd, 110°, L-383GDT
Unit Price (€ / pc.)
0.2083 € *
Available: 829 pcs.
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2083 €
50 pcs.
0.1476 €
250 pcs.
0.1238 €
1000 pcs.
0.1071 €
2500 pcs.
0.0940 €
*incl. VAT plus shipping costs
Subject to prior sale

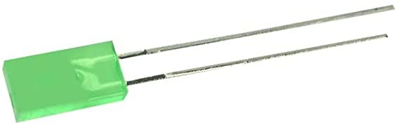

Rectangular LED, L-383GDT, Kingbright
The green source color device is made with gallium phosphide green light emitting diode.
Features
- Low power consumption
- Reliable and rugged
- Excellent uniformity of light output
- Suitable for level indicator
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 2 mm | |
| Lens | green | |
| Number of LEDs | 1 | |
| Enclosure | rectangular | |
| Light intensity min. | 1 cd | |
| On-State Voltage | 2.5 V | |
| Length | 5 mm | |
| Wavelength | 568 nm | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| Radiation angle | 110 ° | |
| min. operating temperature | -40 °C | |
| Forward Current | 20 mA | |
| Colour of the LED | green | |
| Light intensity typ. | 0.004 cd |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
