L-36BID | Kingbright

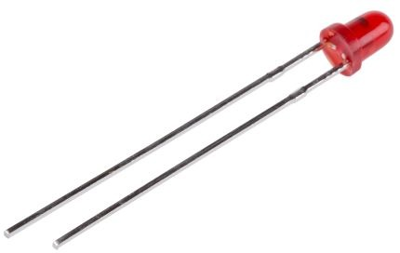

LED, THT, Ø 3 mm, red, 625 nm, 6 to 25 mcd, 60°, L-36BID
Images may differ
Discontinued
Total price
( 1.2376 € * / pcs.)
12.38 €
Available: 520 pcs.
Leadtime
Quantity
Price per unit*
10 pcs.
1.2376 €
50 pcs.
1.0948 €
250 pcs.
0.9401 €
1000 pcs.
0.8211 €
2500 pcs.
0.7497 €
*incl. VAT plus shipping costs
Description
LEDs, 3.0 mm, flashing, type Kingbright L-36.
Viewing angle: 60°.
Technical attributes (type, emission color, wavelength, lens, luminous intensity (min./typical)): L–36BID, red, 627 nm, diffuse red, 15/30 mcd
Technical specifications
| Radiation angle | 60 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 14 V | |
| diameter | 3 mm | |
| Colour of the LED | red | |
| Length | 5 mm | |
| Light intensity min. | 0.006 cd | |
| Light intensity typ. | 0.025 cd | |
| Lens | red | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 625 nm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
