L-13ID | Kingbright
LED, THT, Ø 2 mm, red, 625 nm, 8 mcd to 0.015 cd, 70°, L-13ID
Unit Price (€ / pc.)
0.1023 € *
Standard delivery time from the manufacturer is: 3 Weeks

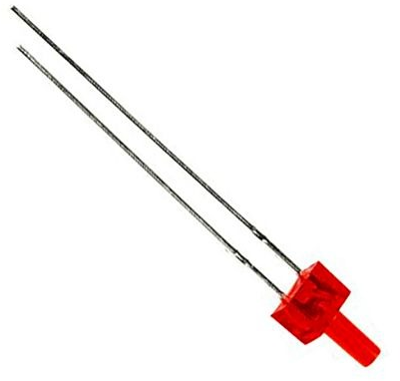

Flat top LED lamp, L-13ID, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Mounts flush with panel
- Low power consumption
- Suitable for audio panel indicator
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 625 nm | |
| Light intensity typ. | 0.015 cd | |
| Forward Current | 20 mA | |
| diameter | 2 mm | |
| Width | 2.5 mm | |
| Assembly | THT | |
| Radiation angle | 70 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 2 V | |
| Light intensity min. | 0.008 cd | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Lens | red | |
| Length | 4.8 mm | |
| Colour of the LED | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
