KPTD-3216SURCK | Kingbright
LED, SMD, 1206, red, 630 nm, 300 mcd to 1.5 cd, 35°, KPTD-3216SURCK
Unit Price (€ / pc.)
0.3689 € *
Available: 28 pcs.
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3689 €
100 pcs.
0.2892 €
500 pcs.
0.2368 €
2000 pcs.
0.2094 €
4000 pcs.
0.1892 €
*incl. VAT plus shipping costs
Subject to prior sale

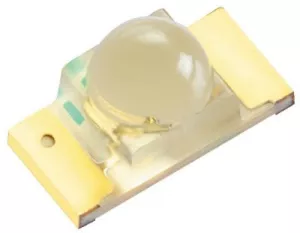

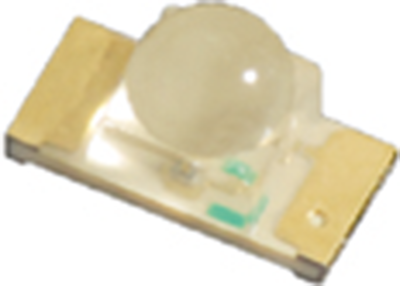

SMD Chip LED lamp, KPTD-3216SURCK, Kingbright
The Hyper Red source color devices is made with AlGaInP on GaAs substrate light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Ideal for backlight and indicator
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 35 ° | |
| Lens | clear | |
| Wavelength | 630 nm | |
| Forward Current | 30 mA | |
| max. operating temperature | 85 °C | |
| Length | 3.2 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 1.5 cd | |
| Assembly | SMD | |
| Width | 1.6 mm | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.3 cd | |
| On-State Voltage | 2.5 V | |
| Enclosure | 1206 | |
| Colour of the LED | red |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
