KPTD-3216SURC-01 | Kingbright
LED, SMD, 1206, red, 630 nm, 1.5 cd, 50°, KPTD-3216SURC-01
Unit Price (€ / pc.)
0.2059 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2059 €
10 pcs.
0.1987 €
25 pcs.
0.1928 €
100 pcs.
0.1797 €
250 pcs.
0.1607 €
*incl. VAT plus shipping costs
Subject to prior sale

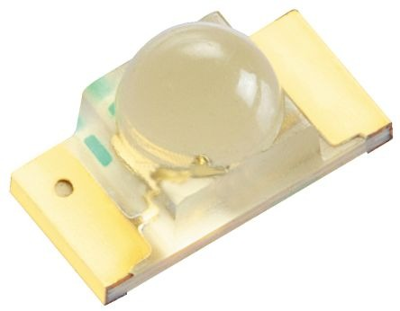

SMD Chip LED lamp, KPTD-3216SURC-01, Kingbright
The Hyper Red source color devices is made with AlGaInP on GaAs substrate light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Ideal for backlight and indicator
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 630 nm | |
| Radiation angle | 50 ° | |
| Length | 3.2 mm | |
| Light intensity typ. | 1.5 cd | |
| On-State Voltage | 1.95 V | |
| Lens | clear | |
| Number of LEDs | 1 | |
| Width | 1.6 mm | |
| Assembly | SMD | |
| Forward Current | 30 mA | |
| Colour of the LED | red | |
| Enclosure | 1206 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
