KPT-3216SECK | Kingbright
LED, SMD, 1206, orange, 601 nm, 0.05 to 1.6 cd, 35°, KPT-3216SECK
Unit Price (€ / pc.)
0.0888 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0888 €
25 pcs.
0.0858 €
100 pcs.
0.0828 €
250 pcs.
0.0769 €
*incl. VAT plus shipping costs
Subject to prior sale

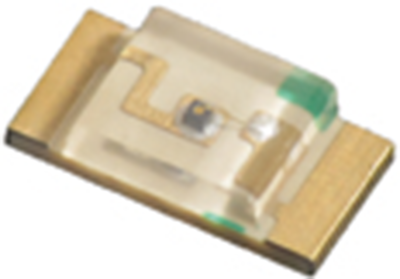

SMD Chip LED lamp, KPT-3216SECK, Kingbright
The super bright orange device is made with AlGaInP (on GaAs substrate) light emitting diode.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | 1206 | |
| Width | 1.6 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 1.6 cd | |
| max. operating temperature | 85 °C | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Wavelength | 601 nm | |
| Length | 3.2 mm | |
| Assembly | SMD | |
| Radiation angle | 35 ° | |
| Forward Current | 30 mA | |
| min. operating temperature | -40 °C | |
| Colour of the LED | orange | |
| Light intensity min. | 0.05 cd |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
