KPT-2012LVZGCK | Kingbright
LED, SMD, 0805, green, 525 nm, 0.05 mcd to 0.1 cd, 140°, KPT-2012LVZGCK
Unit Price (€ / pc.)
0.2023 € *
Standard delivery time from the manufacturer is: On Request

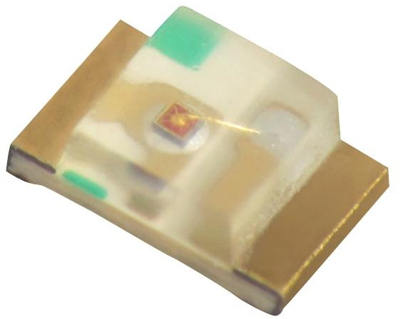

SMD Chip LED lamp, KPT-2012LVZGCK, Kingbright
The green source color device is made with InGaN on sapphire light emitting diode. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
Features
- Low power consumption
- Ideal for backlight and indicator
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Colour of the LED | green | |
| Wavelength | 525 nm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.00005 cd | |
| Lens | clear | |
| Number of LEDs | 1 | |
| Forward Current | 2 mA | |
| Length | 2 mm | |
| On-State Voltage | 2.65 V | |
| Enclosure | 0805 | |
| Width | 1.25 mm | |
| Light intensity typ. | 0.1 cd | |
| Assembly | SMD | |
| Radiation angle | 140 ° |
Download
Logistics
| MSL | MSL 3 |
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
