KPT-2012LVSECK-J3-PRV | Kingbright

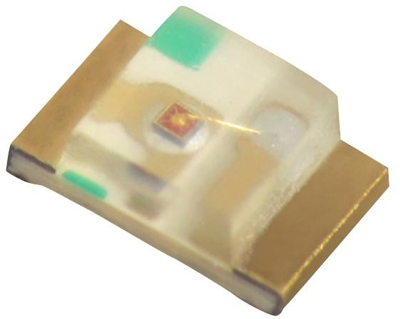

LED, SMD, 0805, red, 625 nm, 20 mcd to 0.1 cd, 140°, KPT-2012LVSECK-J3-PRV
Unit Price (€ / pc.)
0.3332 € *
Available: 725 pcs.
Total Price:
8.33 € *
Price list
Quantity
Price per unit*
25 pcs.
0.3332 €
125 pcs.
0.2916 €
500 pcs.
0.2618 €
2000 pcs.
0.2380 €
5000 pcs.
0.2190 €
*incl. VAT plus shipping costs
Subject to prior sale
LED, KPT-2012LVSECK-J3-PRV, Kingbright
The Hyper Red device is based on light emitting diode chip made from AlGaInP.
FEATURES
- Low power consumption.
- Ideal for backlight and indicator.
- Moisture sensitivity level: 3
- Low current IF=2mA operating.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 140 ° | |
| Lens | clear | |
| Wavelength | 625 nm | |
| Forward Current | 2 mA | |
| max. operating temperature | 85 °C | |
| Length | 2 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.1 cd | |
| Assembly | SMD | |
| Width | 1.25 mm | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.02 cd | |
| On-State Voltage | 1.8 V | |
| Enclosure | 0805 | |
| Colour of the LED | red |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
