KPT-1608SYCK-J3 | Kingbright
LED, SMD, 0603, yellow, 590 nm, 0.2 to 0.32 cd, 60°, KPT-1608SYCK-J3
Unit Price (€ / pc.)
0.1285 € *
Standard delivery time from the manufacturer is: On Request

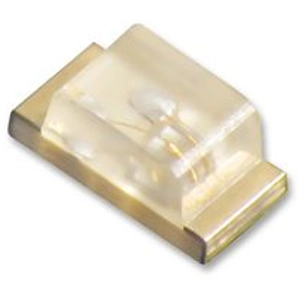

SMD Chip LED lamp, KPT-1608SYCK-J3, Kingbright
New super-bright Through-hole & SMD-LEDs - 590nm yellow & 624nm reddish-orange.
Features
- Low power consumption
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | 0603 | |
| Number of LEDs | 1 | |
| Colour of the LED | yellow | |
| Light intensity min. | 0.2 cd | |
| Light intensity typ. | 0.32 cd | |
| Radiation angle | 60 ° | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Forward Current | 30 mA | |
| Wavelength | 590 nm | |
| Length | 1.6 mm | |
| Width | 0.8 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
