KPL-3015SURCK | Kingbright
LED, SMD, 1206, red, 630 nm, 0.3 to 0.6 cd, 70°, KPL-3015SURCK
Unit Price (€ / pc.)
0.1404 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.14 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1404 €
10 pcs.
0.1357 €
25 pcs.
0.1321 €
100 pcs.
0.1238 €
250 pcs.
0.1111 €
*incl. VAT plus shipping costs
Subject to prior sale

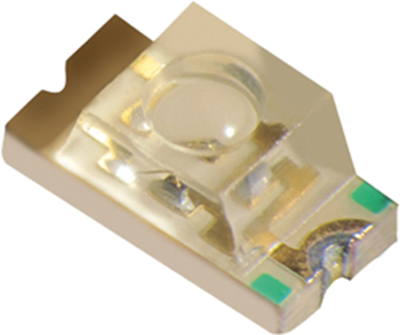

SMD Chip LED lamp, KPL-3015SURCK, Kingbright
The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Low power consumption
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Wavelength | 630 nm | |
| Radiation angle | 70 ° | |
| Length | 3 mm | |
| Light intensity typ. | 0.6 cd | |
| Light intensity min. | 0.3 cd | |
| On-State Voltage | 2.5 V | |
| Lens | clear | |
| min. operating temperature | -40 °C | |
| Number of LEDs | 1 | |
| Width | 1.5 mm | |
| Assembly | SMD | |
| Forward Current | 30 mA | |
| Colour of the LED | red | |
| Enclosure | 1206 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
