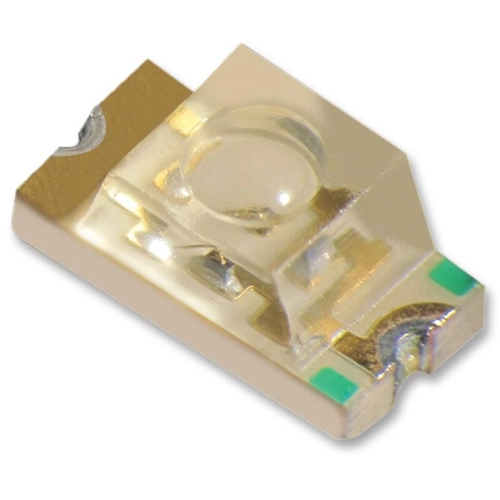

KPL-3015MGC | Kingbright
LED, SMD, 1212, green, 570 nm, 0.07 to 0.14 cd, 70°, KPL-3015MGC
Unit Price (€ / pc.)
0.1416 € *
Standard delivery time from the manufacturer is: On Request
LED, KPL-3015MGC, Kingbright
FEATURES
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- Moisture sensitivity level: 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | 1212 | |
| Number of LEDs | 1 | |
| Colour of the LED | green | |
| Light intensity min. | 0.07 cd | |
| Light intensity typ. | 0.14 cd | |
| Radiation angle | 70 ° | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Wavelength | 570 nm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
