KPHBM-2012LVSURKZGKC | Kingbright

LED, SMD, red/green, 630 nm, 10 mcd to 0.09 cd, 120°, KPHBM-2012LVSURKZGKC

Order No.: 72S6940
EAN: 4099879016263
MPN:
KPHBM-2012LVSURKZGKC
Series: KPHBM-2012
KPHBM-2012LVSURKZGKC Kingbright LEDs

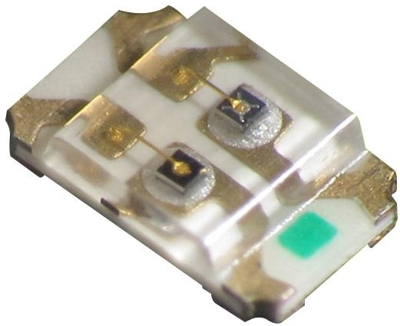

Image may differ
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
690.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.3451 €

SMD Chip LED lamp, KPHBM-2012LVSURKZGKC, Kingbright

The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode. The green source color device is made with AlGaInP on GaAs substrate light emitting diode.

Features

  • Bi -color,Low power consumption
  • Wide viewing angle
  • Ideal for backlight and indicator
  • RoHS compliant
Technical specifications
Filter Property Value
Number of LEDs 2
Wavelength 630 nm
Length 2 mm
max. operating temperature 85 °C
Assembly SMD
Lens clear
Light intensity typ. 0.09 cd
Forward Current 2 mA
Radiation angle 120 °
min. operating temperature -40 °C
Width 1.25 mm
Colour of the LED red/green
On-State Voltage 2.65 V
Light intensity min. 0.01 cd
Logistics
Property Value
MSL MSL 3
Original Packaging Reel with 2,000 pieces
Country of origin CN
Customs tariff number 85414100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
