KPHB-1608CGKSURKC-GX | Kingbright
LED, SMD, red/green, 0.09 cd, 130°, KPHB-1608CGKSURKC-GX
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1249 € *
Standard delivery time from the manufacturer is: On Request

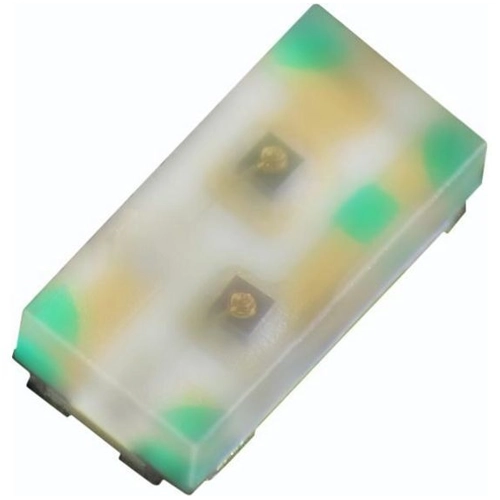

Bi-color surface mount LED lamp, KPHB-1608CGKSURKC-GX, Kingbright
The green source color device is made with AlGaInP on GaAs substrate light emitting diode. The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Compatible with reflow soldering
- Tinned pads for improved solderability
- Halogen-free
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of LEDs | 2 | |
| Colour of the LED | red/green | |
| Light intensity typ. | 0.09 cd | |
| Radiation angle | 130 ° | |
| Lens | clear | |
| Forward Current | 20 mA | |
| Length | 1.6 mm | |
| Width | 0.8 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
