KPA-3010EC | Kingbright
LED, SMD, red, 617 nm, 8 mcd to 0.015 cd, 120°, KPA-3010EC
Unit Price (€ / pc.)
0.1083 € *
Standard delivery time from the manufacturer is: 3 Weeks

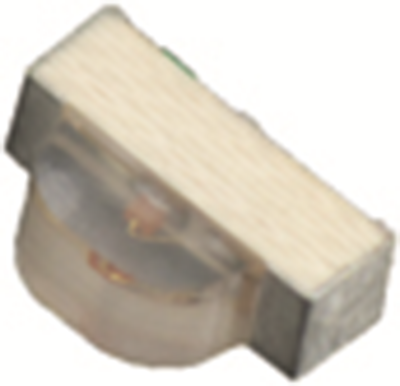

SMD Chip LED lamp, KPA-3010EC, Kingbright
The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- Tinned pads for improved solderability
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 2 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.015 cd | |
| max. operating temperature | 85 °C | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Wavelength | 617 nm | |
| Length | 3 mm | |
| Assembly | SMD | |
| Radiation angle | 120 ° | |
| Forward Current | 30 mA | |
| min. operating temperature | -40 °C | |
| Colour of the LED | red | |
| Light intensity min. | 0.008 cd |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
