KP-2012SURCK | Kingbright
LED, SMD, 0805, red, 630 nm, 0.12 to 0.23 cd, 120°, KP-2012SURCK
Unit Price (€ / pc.)
0.0921 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0921 €
10 pcs.
0.0894 €
25 pcs.
0.0866 €
100 pcs.
0.0813 €
250 pcs.
0.0731 €
*incl. VAT plus shipping costs
Subject to prior sale

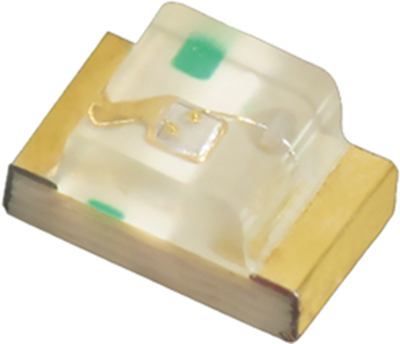

SMD Chip LED lamp, KP-2012SURCK, Kingbright
The hyper red source color device is made with AlGaInP on GaAs substrate light emitting diode.
Features
- Low power consumption
- Wide viewing angle
- Ideal for backlight and indicator
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Wavelength | 630 nm | |
| Radiation angle | 120 ° | |
| Length | 2 mm | |
| Light intensity typ. | 0.23 cd | |
| Light intensity min. | 0.12 cd | |
| On-State Voltage | 2.5 V | |
| Lens | clear | |
| min. operating temperature | -40 °C | |
| Number of LEDs | 1 | |
| Width | 1.25 mm | |
| Assembly | SMD | |
| Forward Current | 30 mA | |
| Colour of the LED | red | |
| Enclosure | 0805 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
