KM2520SYCK03 | Kingbright
LED, SMD, yellow, 590 nm, 1.3 to 2.3 cd, 20°, KM2520SYCK03
Unit Price (€ / pc.)
0.1452 € *
Standard delivery time from the manufacturer is: On Request

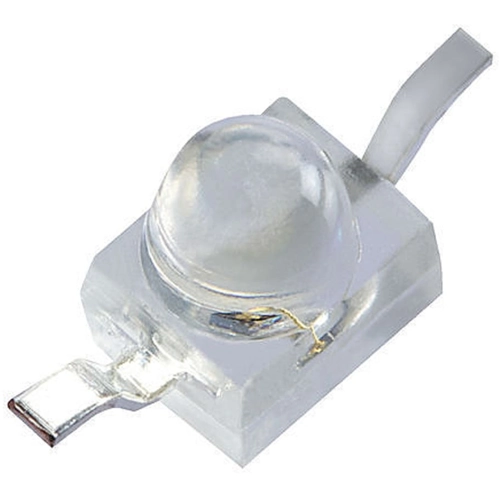

Subminiature solid state lamp, KM2520SYCK03, Kingbright
The super bright yellow device is made with AlGaInP (on GaAs substrate) light emitting diode chip. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs
Features
- Subminiature package
- Gull wing lead
- Long life - solid state reliability
- Low package profile
- Halogen-free
- RoHS compliant
Applications
- Backlight
- Status indicator
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Colour of the LED | yellow | |
| Light intensity min. | 1.3 cd | |
| Light intensity typ. | 2.3 cd | |
| Radiation angle | 20 ° | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Forward Current | 30 mA | |
| Wavelength | 590 nm | |
| Length | 2.5 mm | |
| Width | 2 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
