KM-27SYCK-09 | Kingbright

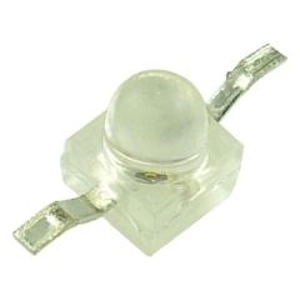

LED, SMD, yellow, 590 nm, 0.9 to 2.2 cd, 20°, KM-27SYCK-09
Unit Price (€ / pc.)
0.2654 € *
Standard delivery time from the manufacturer is: On Request
LED, KM-27SYCK-09, Kingbright
FEATURES
- Sub-miniature package
- Solid state reliability and long life
- Moisture sensitivity level: 3
- Low package profile
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Colour of the LED | yellow | |
| Light intensity min. | 0.9 cd | |
| Light intensity typ. | 2.2 cd | |
| Radiation angle | 20 ° | |
| Lens | clear | |
| On-State Voltage | 2.5 V | |
| Forward Current | 30 mA | |
| Wavelength | 590 nm | |
| Length | 2.21 mm | |
| Width | 2.21 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
