KM-23SGEW-CA | Kingbright
LED, SMD, red/green, 5 mcd to 0.01 cd, 140°, KM-23SGEW-CA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1856 € *
Standard delivery time from the manufacturer is: On Request

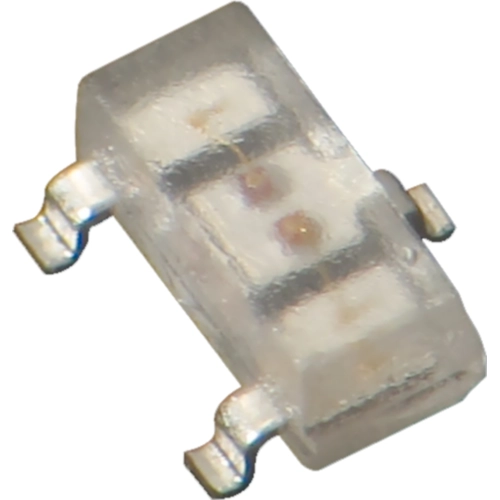

Surface mount LED lamp, KM-23SGEW-CA, Kingbright
The super bright green source color device is made with gallium phosphide green light emitting diode. The high efficiency red source color device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.
Features
- Low power consumption
- Long life - solid state reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of LEDs | 2 | |
| Colour of the LED | red/green | |
| Light intensity min. | 0.005 cd | |
| Light intensity typ. | 0.01 cd | |
| Radiation angle | 140 ° | |
| Lens | white | |
| On-State Voltage | 2 V | |
| Forward Current | 25 mA | |
| Length | 3 mm | |
| Width | 1.3 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
