KA-3528SYC | Kingbright
LED, yellow, 0.012 to 0.04 cd, 120°, KA-3528SYC
Unit Price (€ / pc.)
0.2249 € *
Standard delivery time from the manufacturer is: 3 Weeks
LED, KA-3528SYC, Kingbright

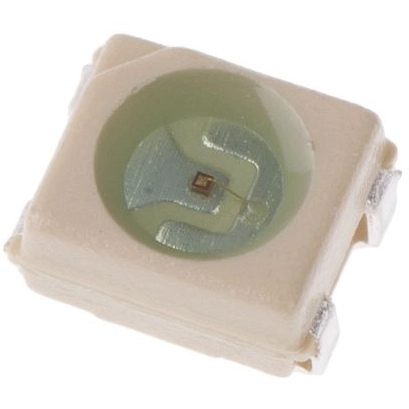

The KA-3528SYC is a 3.5 x 2.8mm super bright yellow SMD LED Lamp with water clear lens. The super bright yellow device is made with AlGaInP (on GaAs substrate) light emitting diode chip.
Features
- Single colour
- Suitable for all SMT assembly and solder process
- Ideal for backlighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 120 ° | |
| Lens | clear | |
| Forward Current | 30 mA | |
| max. operating temperature | 85 °C | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.04 cd | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.012 cd | |
| On-State Voltage | 2.5 V | |
| Colour of the LED | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
