KA-3528LVVBS-D | Kingbright

LED, SMD, blue, 470 nm, 30 mcd to 0.045 cd, 120°, KA-3528LVVBS-D

Order No.: 72S6923
EAN: 4099879016119
MPN:
KA-3528LVVBS-D
Series: KA-3528

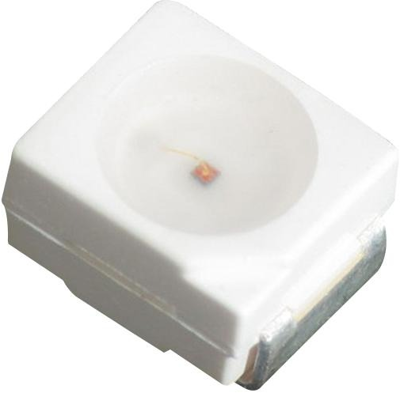

KA-3528LVVBS-D Kingbright LEDs
Image may differ
Unit Price (€ / pc.)
0.2511 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
502.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.2511 €

Surface mount LED lamp, KA-3528LVVBS-D, Kingbright

The blue source color device is made with InGaN light emitting diode. It is recommended to use a wrist band or anti- electrostatic glove when handling the LEDs.

Features

  • Single color
  • Suitable for all SMT assembly and solder process
  • Ideal for backlighting
  • Low current IF=2mA operating
  • RoHS compliant
Technical specifications
Filter Property Value
Number of LEDs 1
Radiation angle 120 °
Colour of the LED blue
Wavelength 470 nm
Assembly SMD
Lens clear
Light intensity min. 0.03 cd
Length 3.2 mm
Light intensity typ. 0.045 cd
Width 2.8 mm
Forward Current 2 mA
min. operating temperature -40 °C
On-State Voltage 2.65 V
max. operating temperature 85 °C
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 2,000 pieces
Customs tariff number 85414100
MSL MSL 3
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
