KA-3021LVSESK-J4-TR | Kingbright
LED, SMD, orange, 605 nm, 120 mcd to 0.2 cd, 120°, KA-3021LVSESK-J4-TR
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 3 Weeks

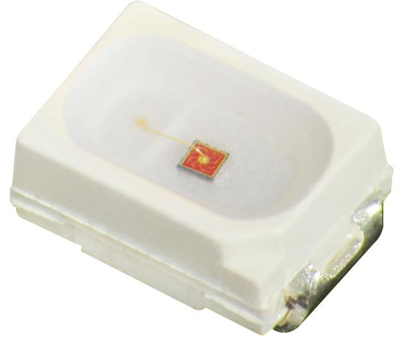

Surface mount LED lamp, KA-3021LVSESK-J4-TR, Kingbright
The orange source color device is made with AlGaInP light emitting diode.
Features
- Suitable for compact optoelectronic applications
- Low power consumption
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 1 | |
| Wavelength | 605 nm | |
| Length | 2.7 mm | |
| max. operating temperature | 85 °C | |
| Assembly | SMD | |
| Lens | clear | |
| Light intensity typ. | 0.2 cd | |
| Forward Current | 2 mA | |
| Radiation angle | 120 ° | |
| min. operating temperature | -40 °C | |
| Width | 2 mm | |
| Colour of the LED | orange | |
| On-State Voltage | 1.8 V | |
| Light intensity min. | 0.12 cd |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
