81.020 | Kendrion Kuhnke
5/2-way steelspool valve, 0-10 bar, 81.020
Unit Price (€ / pc.)
164.5889 € *
Standard delivery time from the manufacturer is: On Request
Steel spool valves, type Kuhnke 81.
5/2- way valve; Pressure range: 0 to 10 bar. Rated orifice: 2.0 mm. Housing: aluminum alloy. Valve end caps: zinc alloy or Macrolon. Spool and liner: steel hardened, corrosion resistant. Pressurized media fitting: M 5. Medium: or filtered non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.

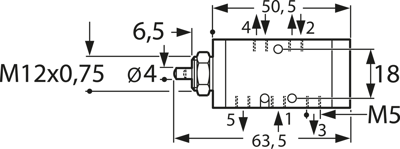

With plunger, type 81.020.
Directional; Actuating stroke: approx. 3.5 mm. Actuating force: approx. 10 N.
Type: 81.020, valve
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | M5 connector | |
| Nominal width | 2 mm | |
| Pressure range | 0-10 bar | |
| Version | 5/2-way steelspool valve |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84812090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
