47.300 | Kendrion Kuhnke
Fast vent valve, 8 bar, 47.300
Unit Price (€ / pc.)
54.1807 € *
Standard delivery time from the manufacturer is: On Request

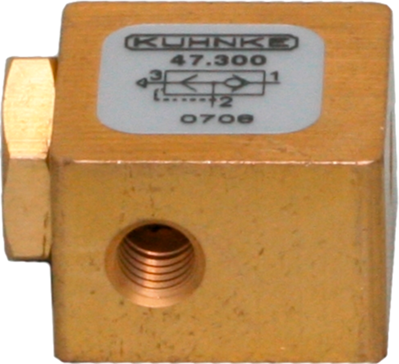

Quick exhaust valves, type Kuhnke 47.300.
Can be operated as check valve where the secondary line can be vented directly into the free air by taking the primary line off pressure; Pressure range: max. 8.0 bar. Rated width: 2.0 mm. Housing material: brass. Mounting position: any. Pressurized media fitting: M 5. Medium: filtered and oiled, or filtered and non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.
Type: 47.300, quick exhaust valve
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal width | 2 mm | |
| Connection | M5 connector | |
| Version | fast vent valve | |
| Pressure range | 8 bar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85419000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
