47.255 | Kendrion Kuhnke
Choke check valve, 0-8 bar, 47.255
Unit Price (€ / pc.)
105.2674 € *
Available: 11 pcs.
Total Price:
105.27 € *
Price list
Quantity
Price per unit*
1 pcs.
105.2674 €
5 pcs.
98.9366 €
15 pcs.
95.1524 €
50 pcs.
90.9398 €
150 pcs.
87.1675 €
*incl. VAT plus shipping costs
Subject to prior sale

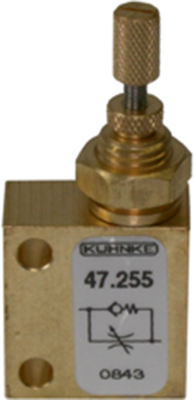

One-way flow restrictors, type Kuhnke 47.255.
For reducing the flow rate; Pressure range: max. 8.0 bar. Housing: CuZn. Restrictor spindle: stainless steel. Seal: Perbunan or plastic. Pressurized media fitting: M 5. Medium: filtered, oiled, or filtered non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.
Type: 47.255, valve

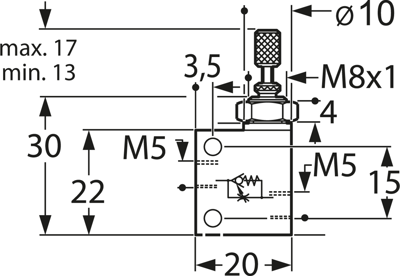

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | choke check valve | |
| Nominal width | 2 mm | |
| Pressure range | 0-8 bar | |
| Connection | M5 connector |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84818059 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
